Installed equipment and process capability

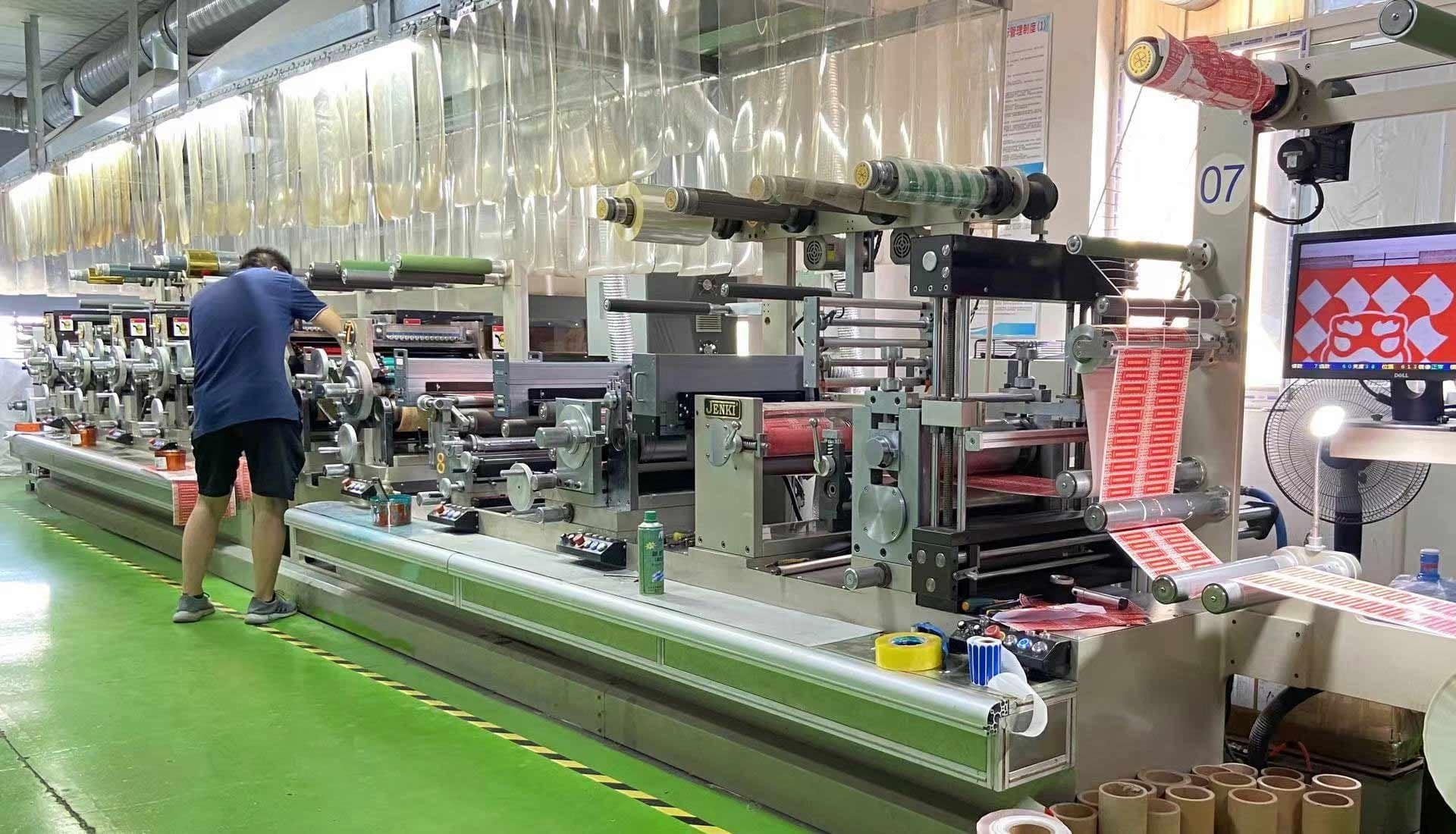

Thermal Paper Manufacturing Equipment

Equipment ratings describe installed capability; actual output and acceptance criteria depend on product mix, specification, and production scheduling.

Coating LinesSlitting & RewindingLabel ConvertingTesting Lab

Browse Equipment Discuss Capacity

Production Lines

50,000 m²

Factory Area

500M+

Rated Rolls/Year

By Schedule

Operation

Coating Lines

Coating equipment applies thermal-sensitive layers under controlled process settings selected for the applicable material and specification.

Voith Curtain Coater (Germany)

4 units

Max width: 2,800mm | Rated speed: 800m/min | Coating weight range: 2–8 g/m²

Machine capability; final coating acceptance criteria are confirmed in the approved product specification

Jagenberg Blade Coater (Germany)

3 units

Max width: 2,400mm | Rated speed: 600m/min | Dual-side coating capable

Used for selected specialty and high-sensitivity thermal grades

Valmet Infrared Drying System

7 units

Temperature range: 80–180°C | Zone-controlled drying

Drying settings are controlled for the applicable material and process plan

Slitting & Rewinding

After coating, parent rolls are converted to specified widths and lengths under the approved order tolerances.

Kampf Slitter-Rewinder (Germany)

8 units

Min width: 20mm | Max width: 1,200mm | Rated speed: 1,200m/min

Machine capability; final width tolerance is confirmed in the approved product specification

Tidland Automatic Tension Control

Configured slitters

Closed-loop tension feedback

Supports defined roll-hardness and winding requirements

Perini Rewinder (Italy)

4 units

Log diameter: 20–120mm | Core sizes: 12mm, 25mm, 38mm

Supports selected small-core portable-printer roll formats

Label Converting

Label production lines support die-cutting, matrix removal, and roll-to-roll converting for confirmed label specifications.

Mark Andy Label Press (USA)

3 units

Max web width: 330mm | Rated speed: 200m/min

Machine capability; die-cut tolerance is confirmed for the applicable label and order

Edale Flexo Printing Unit

2 units

Up to 8 colors | UV curing | Min label size: 10mm x 10mm

Available for qualifying custom-printed label orders

Prati Rewinder & Inspection

4 units

Inline vision inspection | Configurable defect threshold | Rated speed: 400m/min

Detects defined print defects under the configured inspection plan and threshold

Quality & Testing Lab

In-house testing capabilities support the methods and sampling requirements defined for the applicable material, product, and order.

Mettler Toledo Basis Weight Tester

6 units

Instrument accuracy: ±0.1g/m² | Range: 20–200g/m²

Measurement frequency is defined by the applicable process or quality plan

X-Rite Spectrophotometer

4 units

CIE L*a*b* color measurement | Gloss measurement

Supports batch comparison against specified color and brightness criteria

Accelerated Aging Chamber

2 units

Temperature: 20–80°C | Humidity: 20–95% RH | 12 test positions

Supports comparative aging under documented laboratory conditions; field life depends on grade and exposure
